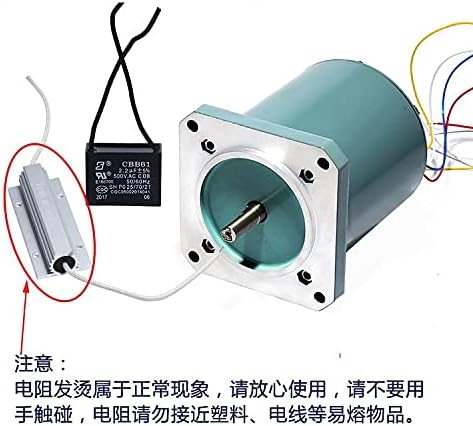

70TDY4 / 70TDY115-1 permanent magnet low speed synchronous motor 220V 60rpm/115rpm - (Speed: 70TDY4 60rpm)

55TDY4 permanent magnet low speed motor 16W 60 rotor shaft through 6MM, hole and hole distance 48MM,55TDY115-1 Permanent magnet low-speed motor 16W 115 rotor shaft through 6MM, hole and hole distance 48MM70TDY4 permanent magnet low-speed motor 24W 60 rotor shaft through 8MM, hole and hole distance 64MM,70TDY115-1 permanent magnet low-speed motor 28W 115 rotor shaft through 8MM, hole and hole distance 64MM90TDY4 permanent magnet low-speed motor 70W 60 rotor shaft through 9MM, hole and hole distance 76MM,90TDY115-1 Permanent magnet low-speed motor 88W 115 rotation shaft through 9MM, hole and hole distance 76MM110TDY4 permanent magnet motor 110W 60 rotating shaft through 11MM, hole and hole distance 94MM,110TDY115-1 permanent magnet motor 110W 115 rotor shaft through 11MM, hole and hole distance 94MM130TDY4 permanent magnet motor 150W 60 rotation shaft via 16MM, hole and hole distance 110MM130TDY115-1 permanent magnet motor 150W 115 rotor shaft through 16MM, hole and hole distance 110MM This product is a closed structure. Its characteristics: high reliability, long service life, low vibration and low noise during operation, stable speed, large starting torque, no current impact during startup, minimal current change during load change, and a certain self-locking capability Instant start, reverse and stop. This product can be used as a driving element in a low-speed transmission system. This product can be used where low-speed direct transmission is required. If equipped with a variable frequency power supply, the speed of the motor can be changed to meet various needs.All products pass the 72-hour uninterrupted power aging test before leaving the factory.Item specifics:Output power: 24W / 28WFrequency: 50HzModel number: 70TDY4 / 70TDY115-1Phase: Single-phaseProtect feature: Totally EnclosedType: Induction MotorEfficiency: IE 1Ac voltage: 208-230 /

• Speed: 70TDY4 60rpm
• Output power: 24W / 28W
• Frequency: 50Hz
• Model number: 70TDY4 / 70TDY115-1
• Phase: Single-phase
