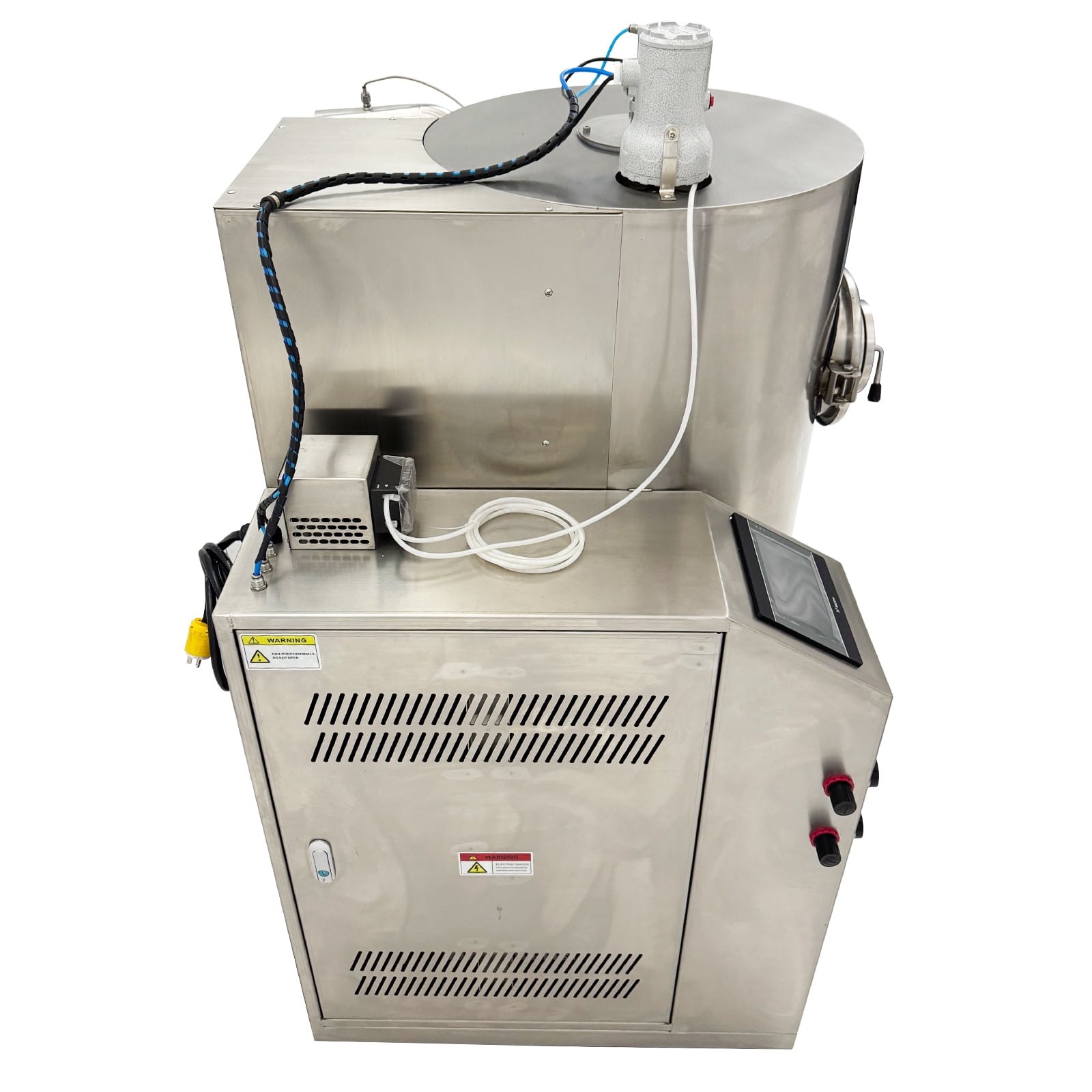

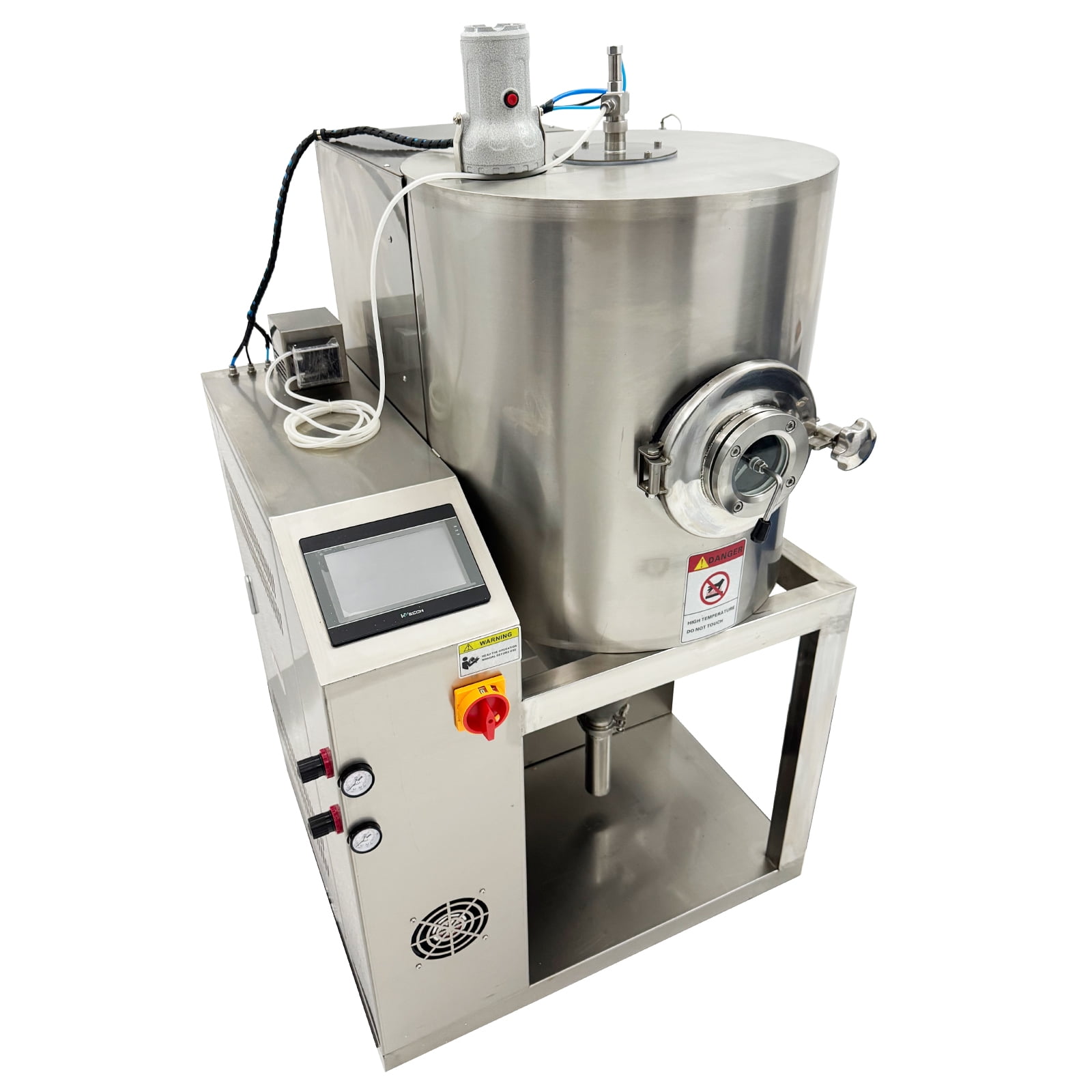

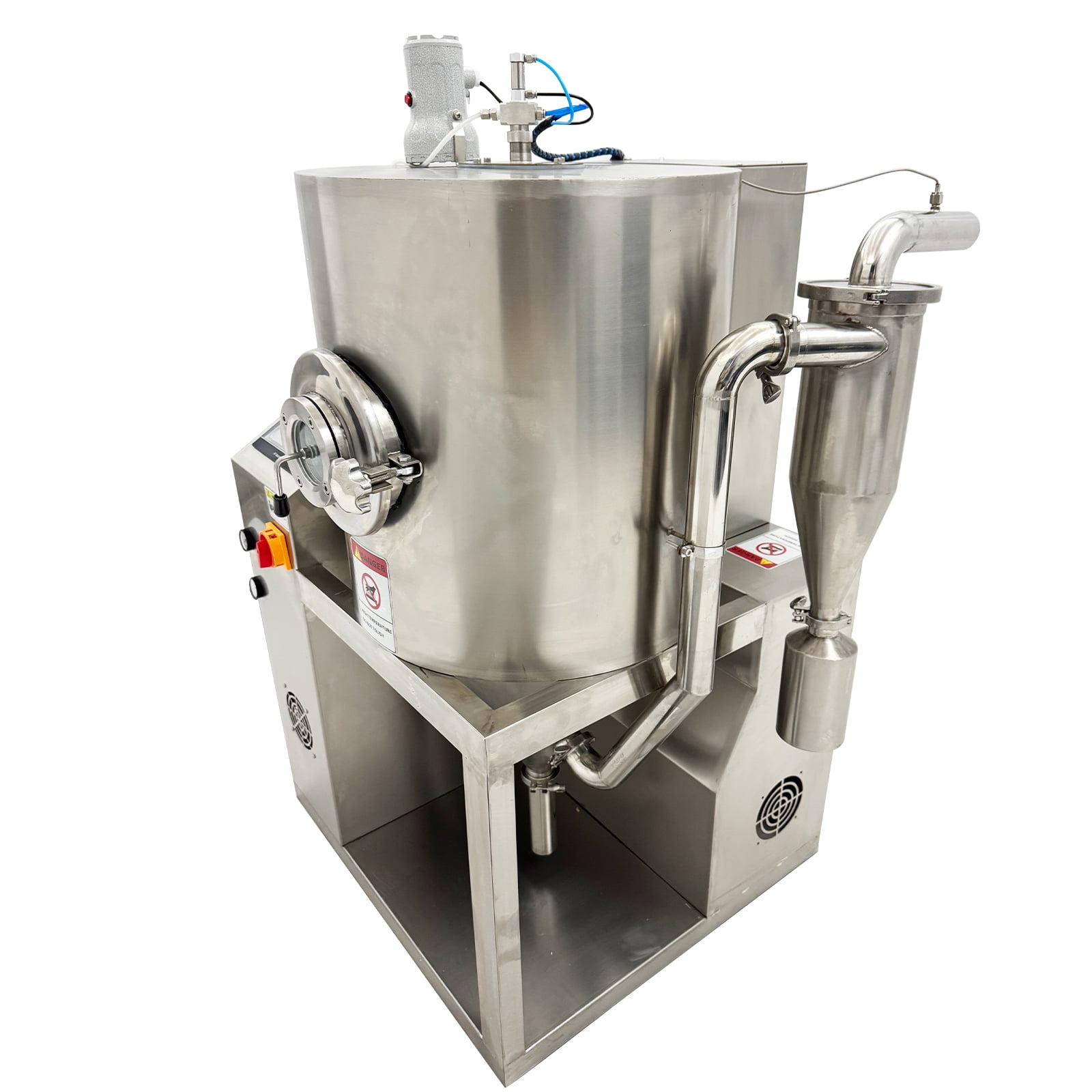

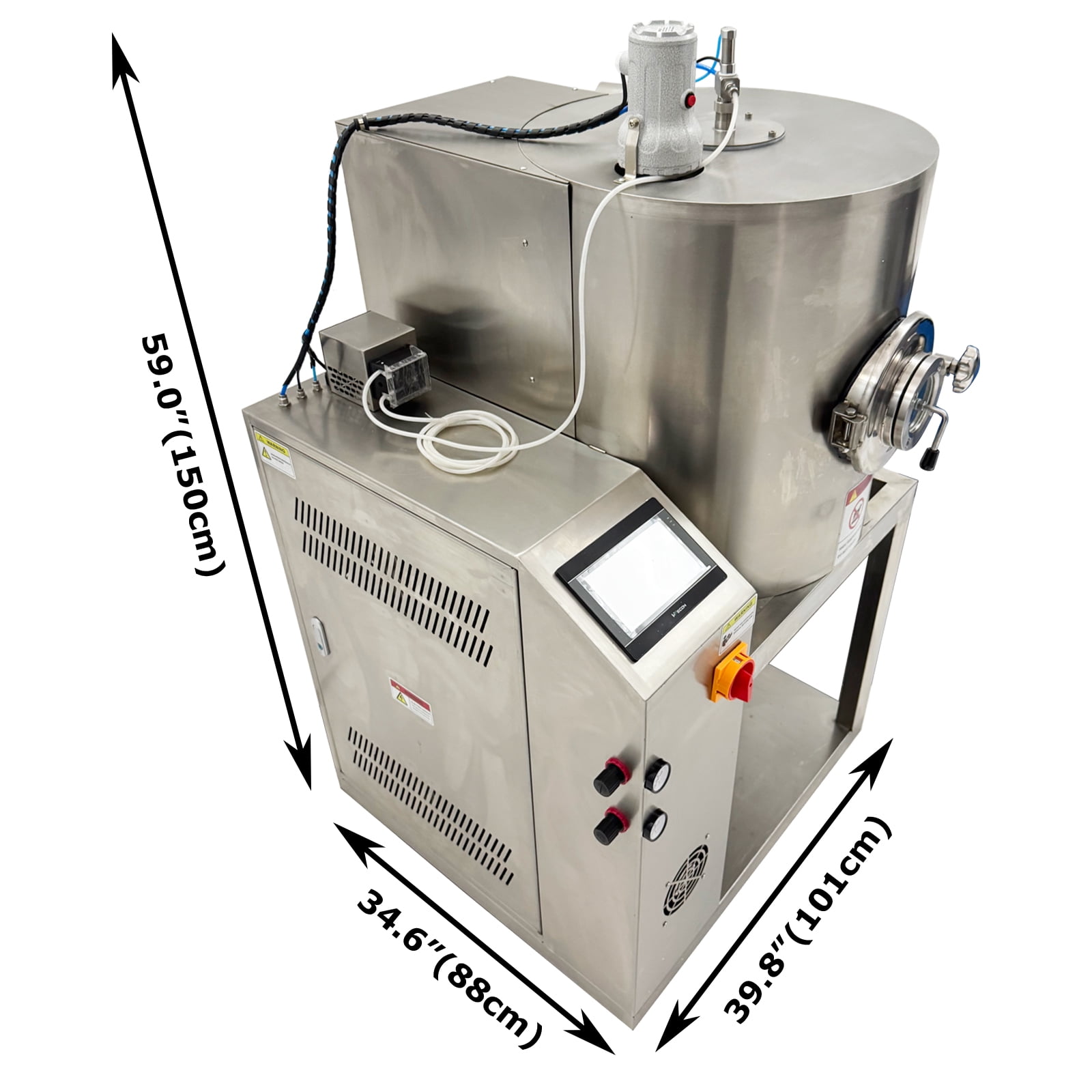

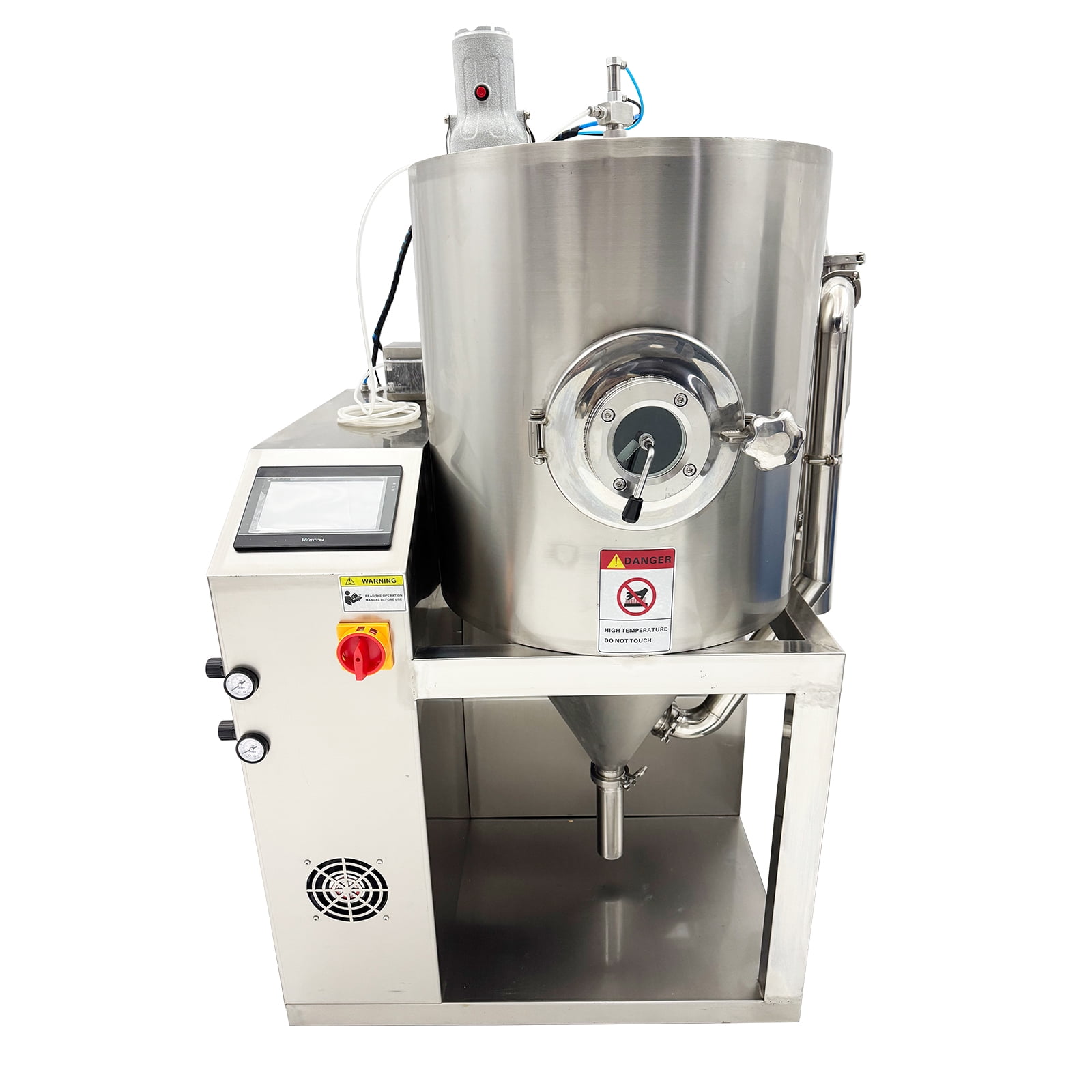

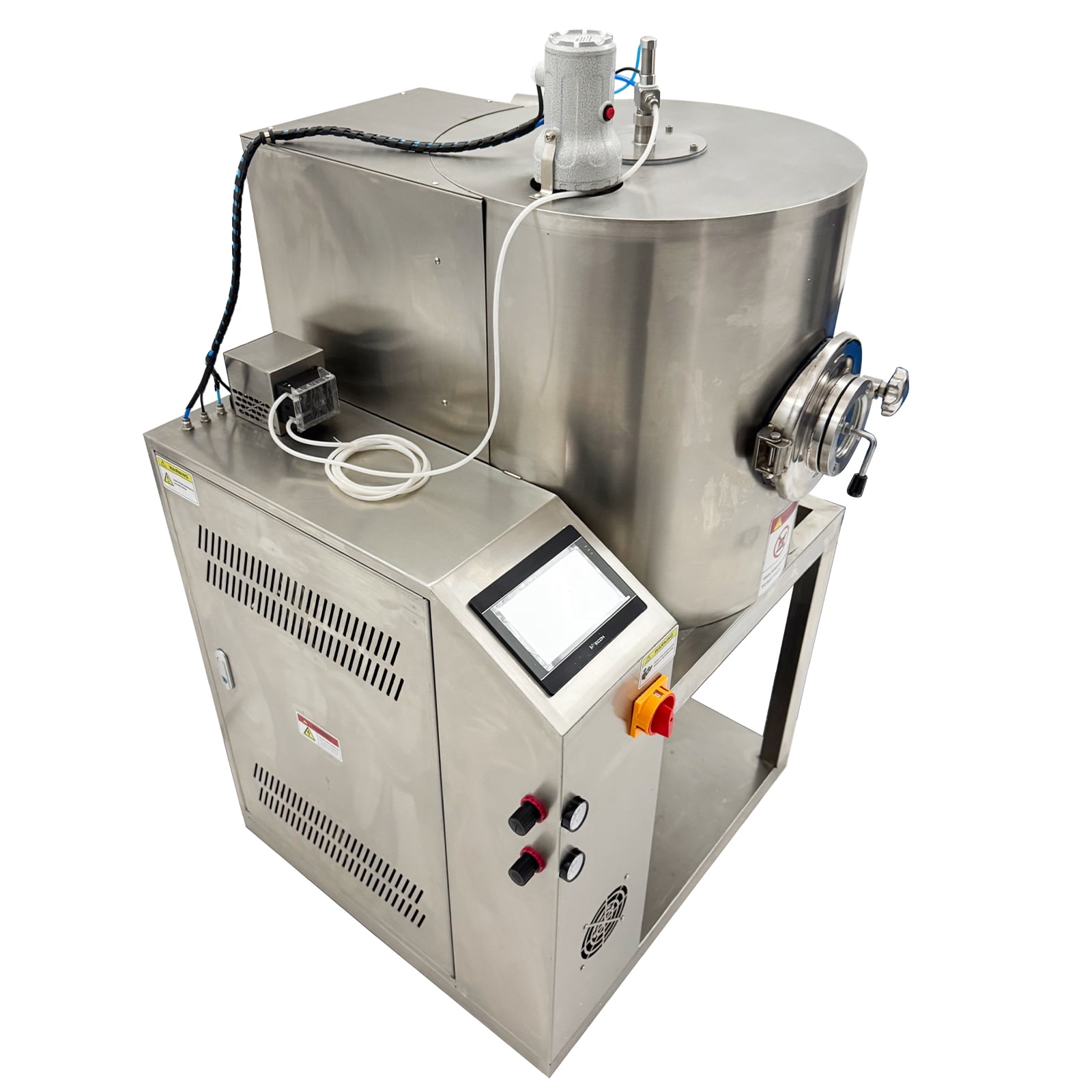

3L Lab Mini Spray Dryer Liquid Drying Machine Industrial Lab Spray Dryer 1500~3000 mL/H 220V 1PH

Product Overview: <br>The small-scale spray dryer is suitable for universities, research institutes, and industrial laboratories to produce micro-scale powdered particles. It has broad applicability for solutions such as emulsions and suspensions, and is ideal for drying heat-sensitive materials. <br>Since the sprayed material is only exposed to high temperatures when atomized into fine droplets, the heat exposure is instantaneous, ensuring that the active ingredients remain intact after drying. <br> <br>Product Parameters: <br>Voltage:AC 220V <br>Phase number:1 <br>Total power:6.8KW <br>Inlet air temperature control:30~300 ℃ <br>Outlet air temperature control:30~140 ℃ <br>Evaporation water volume:1500~3000 mL/H <br>Feeding capacity:50~3000 mL/H <br>Average drying time:1.0~1.5S <br>Fan: 0.55KW (Maximum air volume:100m3/h;Maximum air pressure: 18KPa) <br>Air compressor:1.1KW (Maximum gas production: 60L/min) <br>Working pressure of compressed air:2~3 Bar <br>Nozzle diameter:0.04" (1.00mm) <br>Operating temperature:10~40 ℃ <br>Feeding method:Peristaltic pump regulation <br>Real-time temperature control (PID):±1 ℃ <br>Real-time display temperature accuracy:0.1 ℃ <br>Material:304 stainless steel <br>Intended use:Biological laboratory, Medical laboratory, <br>Microbiological laboratory, Physical laboratory <br>Packing size:41.7"*35.8"*61.4" (106cm*91cm*156cm) <br>Net weight/Gross weight:264.5lbs(120kg) / 458.6lbs(208kg) <br> <br>Item Included: 056797-SunS <br>Spray dryer *1 <br>Accessory Kit *1

• 【Precise Temperature Control System】This equipment is the ideal choice of thermal sensitive materials, the average 1.0~1.5S instant drying, equipped with PID intelligent algorithm, to achieve the inlet temperature 30-300℃ and outlet temperature 30-140℃ double zone ±1℃ accurate control.

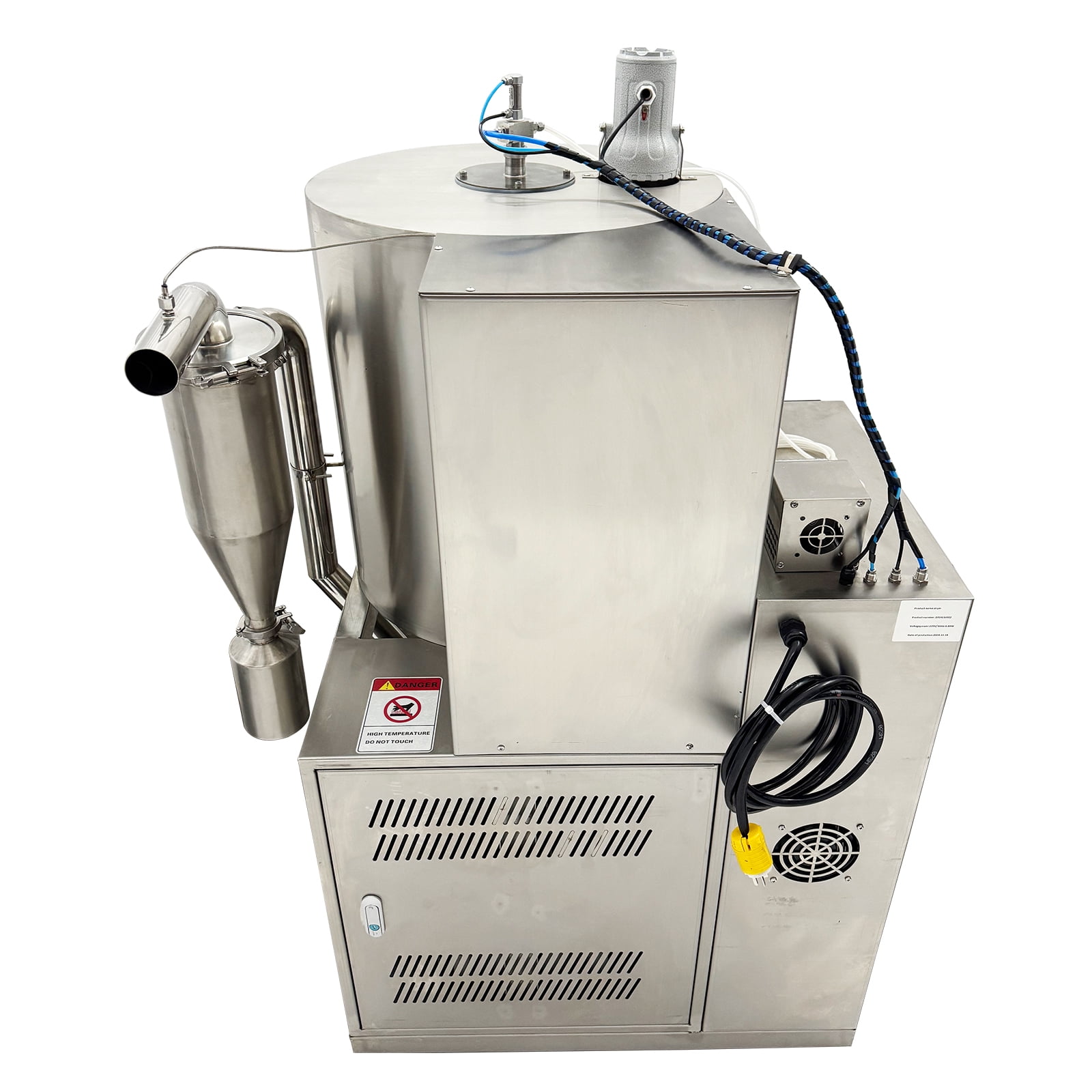

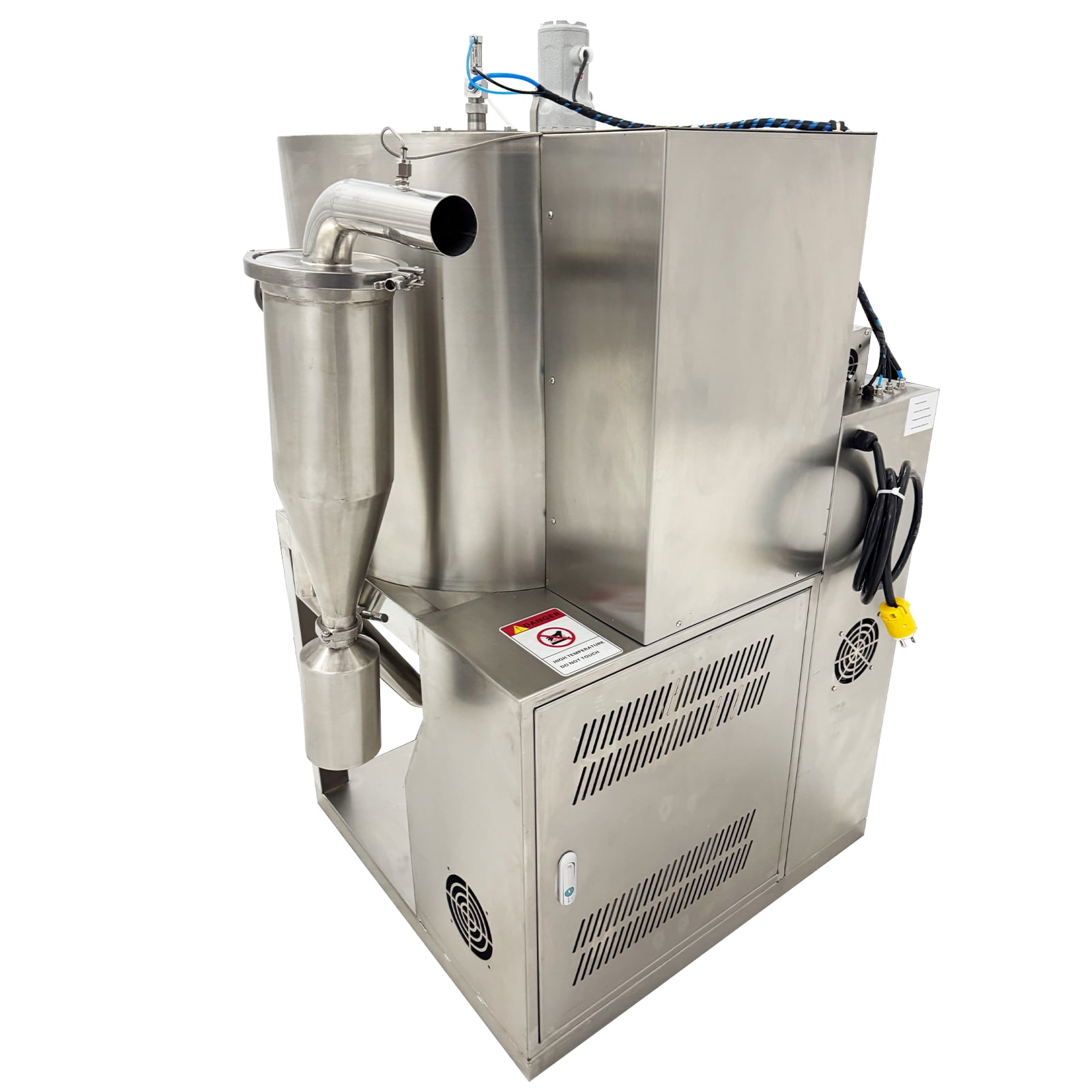

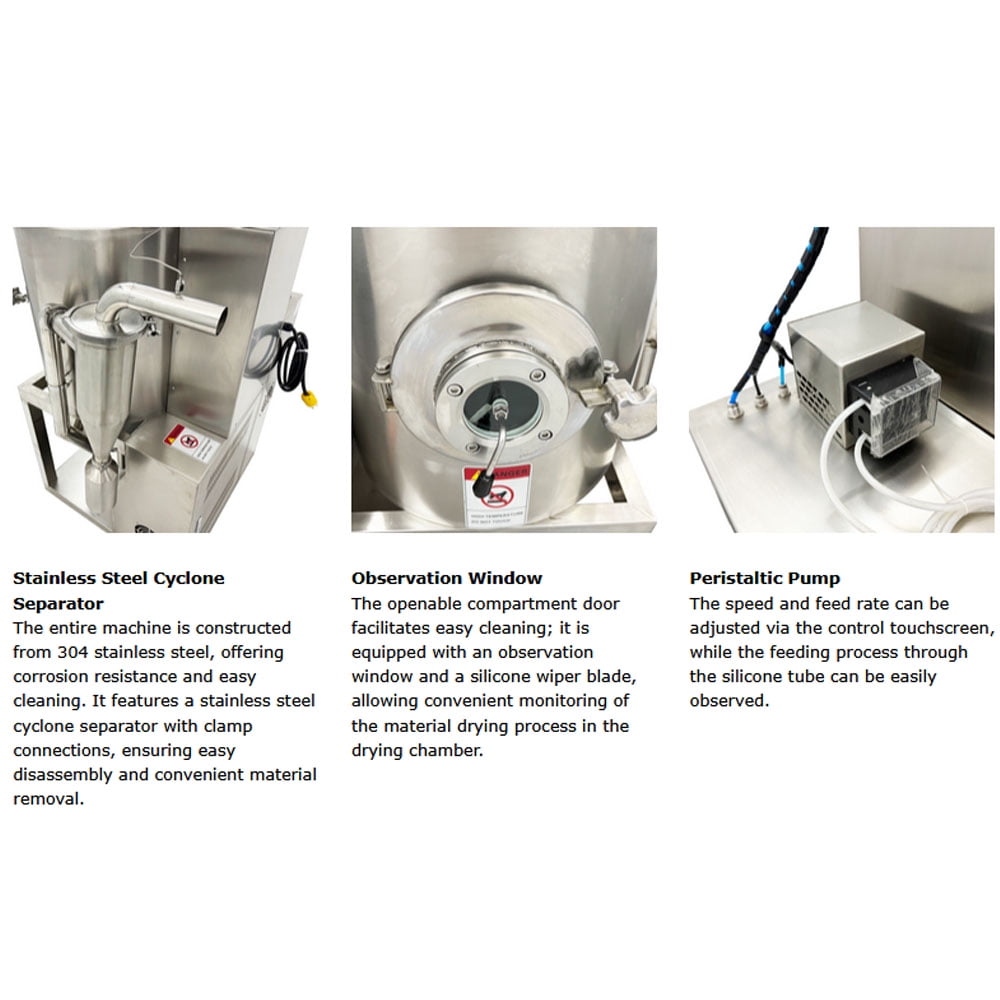

• 【High Quality Material】The entire machine is constructed from 304 stainless steel, it features a stainless steel cyclone separator with clamp connections, ensuring easy disassembly and convenient material removal.

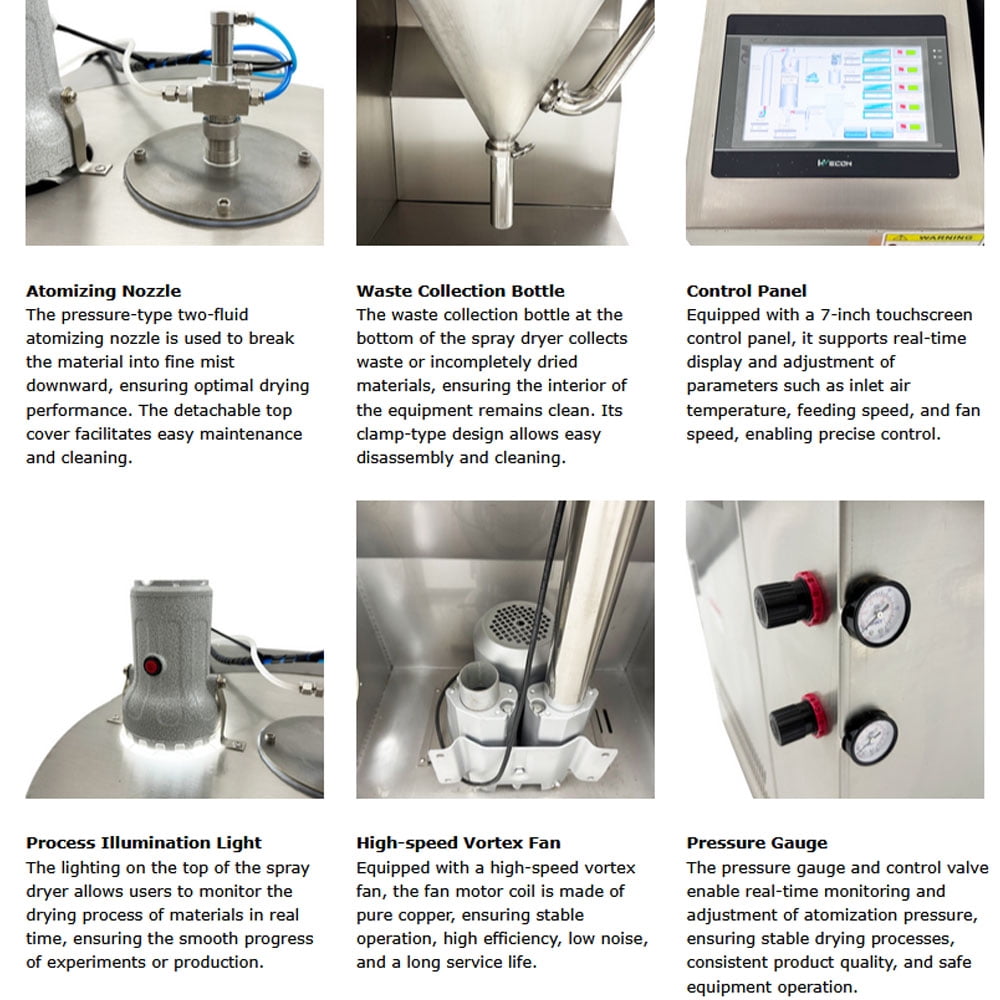

• 【Visual Design】The equipment is equipped with an observation window and silicone wiper, which is convenient for monitoring the drying process. The lighting on the top allows users to observe the drying of materials in real time. The transparent silicone tube of the peristaltic pump makes it more convenient to observe the feeding process.

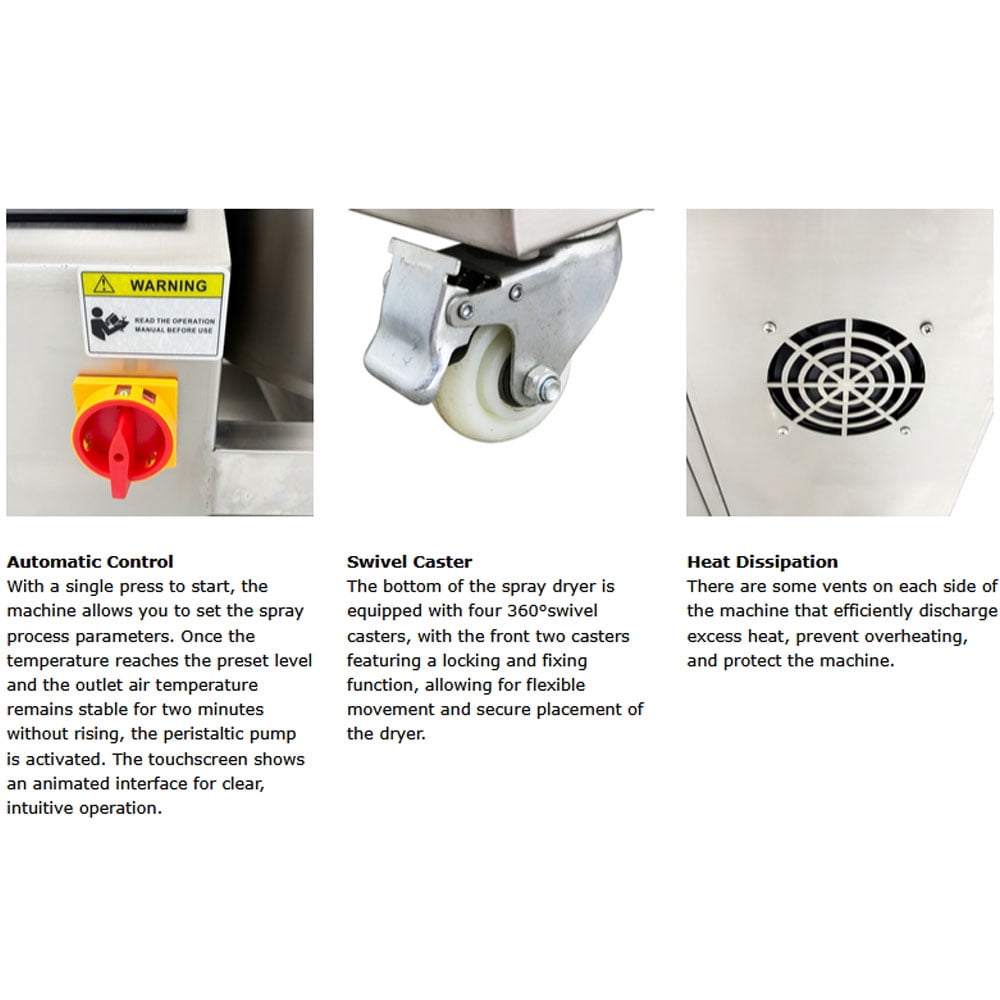

• 【Good Heat Dissipation Performance】18KPa high pressure fan and multi-side vent, with a powerful heat dissipation system, when the fan is shut down first, the system will force the fan to run until the air intake temperature drops below 50 ° C to prevent damage to the heater, equipped with high-speed scroll fan to ensure stable operation.
• 【Pressure Pressure Monitoring】The pressure gauge and control valve enable real-time monitoring and adjustment of atomization pressure, ensuring stable drying processes, consistent product quality, and safe equipment operation.
